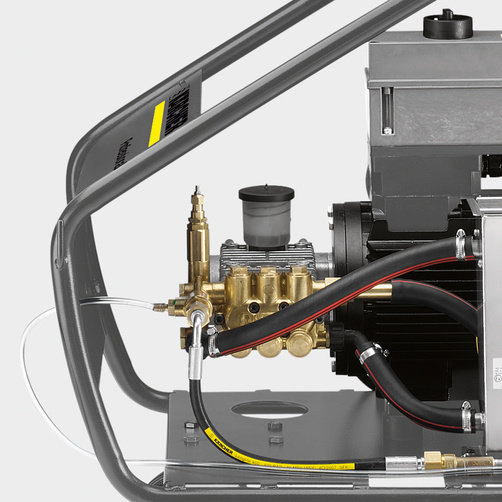

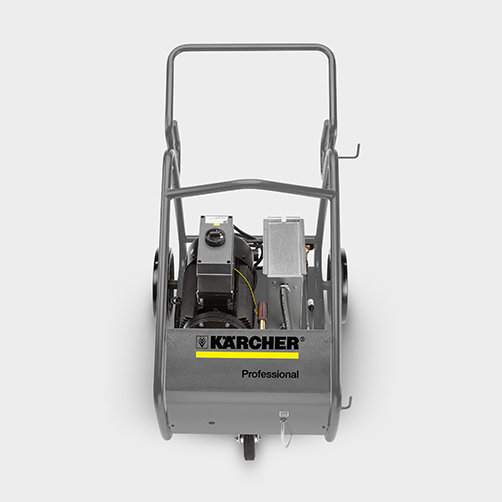

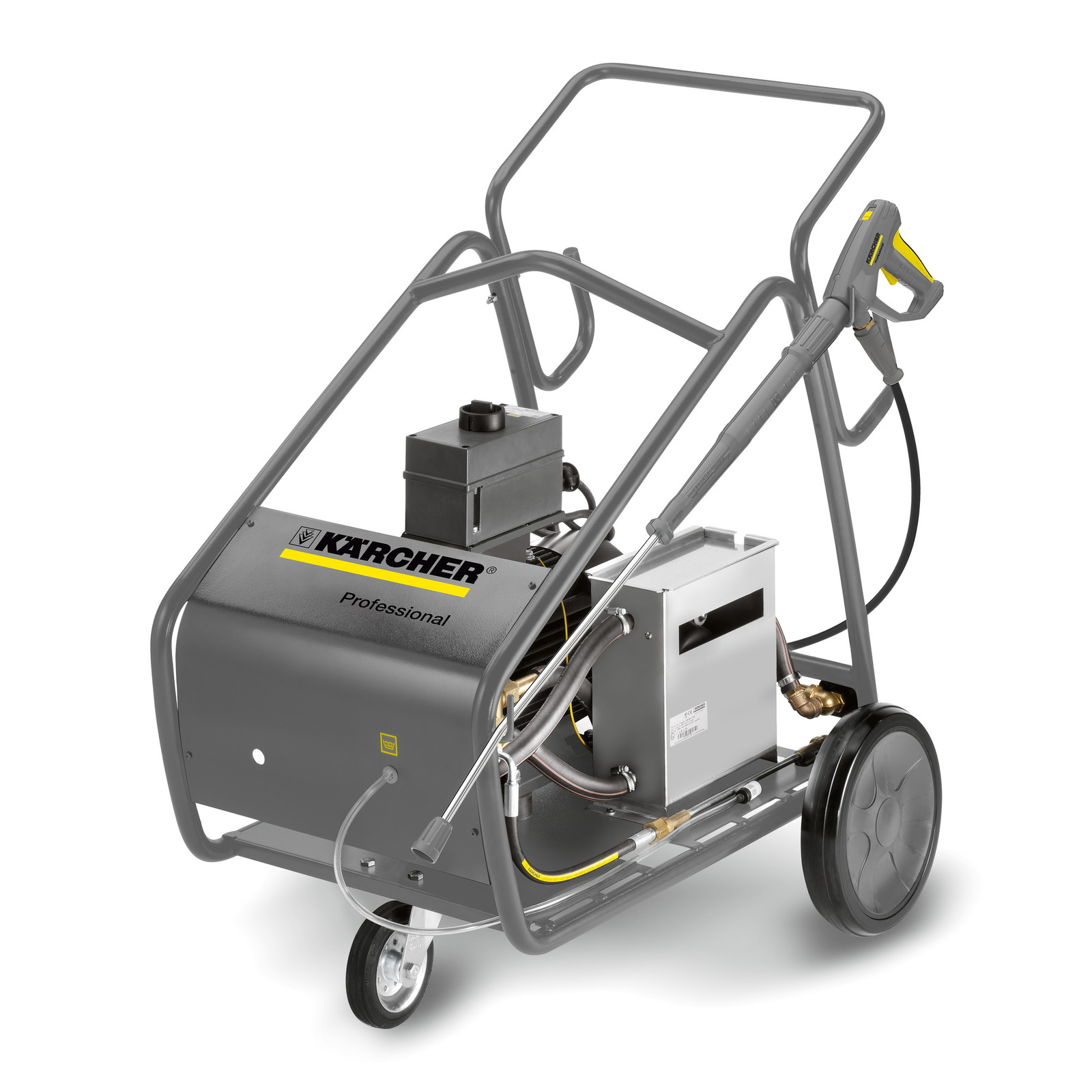

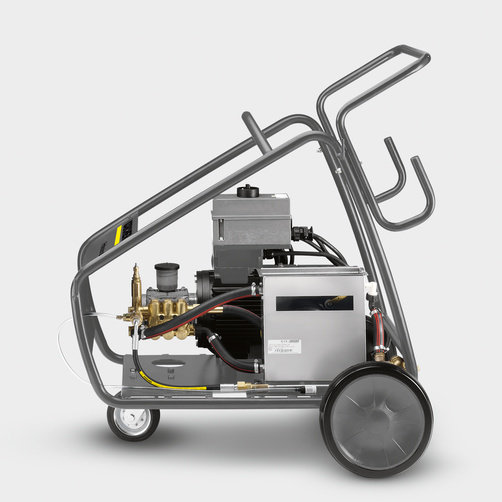

HD 10/16 4 CAGE High Pressure Washer
SPECIFICATIONS
Technical data
| Supply voltage (Ph/V/Hz) | 3 / 400 / 50 |
| Flow rate (l/h) | 1000 |
| Inlet temperature (°C) | 50 |
| Working pressure (bar/MPa) | 160 / 16 |
| Max. pressure (bar/MPa) | 220 / 22 |
| Connected load (kW) | 5.5 |
| Weight (with accessories) (kg) | 122.6 |
| Weight incl. packaging (kg) | 131.2 |
| Dimensions (L x W x H) (mm) | 980 x 720 x 1100 |
Description
Potentially explosive areas, “ATEX zones”, place particular demands on components and materials. Our HD 10/16-4 Cage Ex high-pressure cleaner meets these requirements and complies with all of the stringent safety regulations in its explosion-proof design. With a working pressure of 160 bar and water flow rate of around 1,000 litres per hour, the machine is designed for a variety of cleaning tasks. Moreover, it incorporates outstanding technical innovations that make cleaning effortless and take handling to a new level: the EASY!Force high-pressure gun and EASY!Lock quick-release fasteners. While the EASY!Force high-pressure gun makes use of the recoil force of the high-pressure jet to reduce the holding force to zero, the EASY!Lock quick-release fasteners enable handling that is five times faster than with conventional screw connections, without losing any robustness or longevity. The HD 10/16-4 Cage Ex combines maximum safety with outstanding cleaning performance and durable technology.
